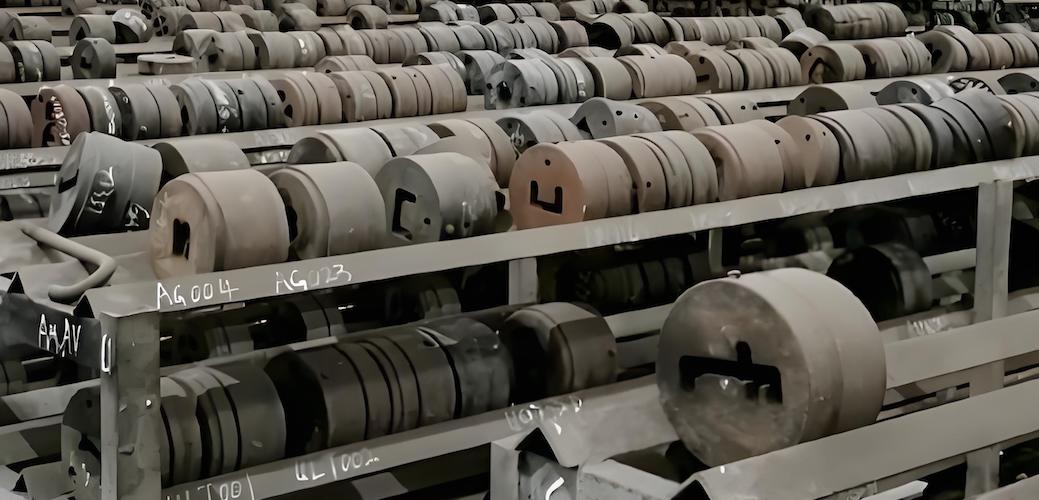

Die blockage in aluminum extrusion dies is a common phenomenon during aluminum profile production, seriously impacting production efficiency and product quality. To effectively prevent die blockage and reduce mold damage, equipment failure, and personal injury, operators must take this issue seriously. This article will analyze the characteristics, causes, and solutions for die blockage in detail, sharing real-world examples to help frontline operators better understand and address die blockage.
Die Blockage Characteristics
Die blockage occurs when the aluminum substrate becomes stuck in the work zone or at the blanking point. During die blockage, extrusion pressure rapidly increases to high levels, causing the die to malfunction. This sudden spike in pressure can lead to catastrophic failures, including die breakage or deformation. After die blockage, the true condition of the profile cannot be accurately reflected, requiring correction and potentially leading to significant downtime. Die blockage not only impacts production efficiency but can also damage the die, increasing production costs and leading to waste of raw materials. Understanding these characteristics is crucial for operators to recognize early signs of blockage and take preventive measures.
Analysis of Causes of Aluminum Extrusion Die Blockage
Die blockage can be categorized into several types, primarily the following:
1.Die Blockage Caused by Mold
Improper mold design, insufficient manufacturing precision, or severe wear can all lead to die blockage. For example, improper mold flow path design and uneven flow rates can cause sluggish aluminum flow in certain areas, leading to blockage. Additionally, the accumulation of debris or oxidation within the mold can exacerbate these issues, making regular maintenance and inspection essential.
2.Die Blockage Caused by Extrusion Operation
Improper operation is a major cause of die blockage. Excessive extrusion speeds, improper temperature control, and insufficient aluminum preheating can all affect the fluidity of the molten aluminum and increase the risk of die blockage. Operators must be trained to monitor these parameters closely and adjust them in real-time to maintain optimal conditions.
3.Die Blockage Caused by Tooling
Improper selection and use of tooling can also lead to die blockage. For example, using inappropriate aluminum or mold accessories can hinder the flow of molten aluminum, causing die blockage. It is vital to ensure that all tooling is compatible with the specific aluminum alloys being used and that they are regularly inspected for wear and tear.
4.Die Blockage Caused by Equipment
Equipment failure or unstable performance can also lead to die blockage. For example, insufficient pressure in the extruder or a malfunction in the hydraulic system can prevent the molten aluminum from being extruded smoothly. Regular maintenance schedules and performance checks can help mitigate these risks.
5.Die Blockage Caused by Foreign Matter
During the production process, the intrusion of foreign matter can cause die blockage. Foreign matter can be impurities in the production environment or wear particles from the mold or equipment. Implementing strict cleanliness protocols and using filtration systems can help reduce the likelihood of contamination.
6.Die Blockage Caused by Temperature
The temperature of the molten aluminum has a direct impact on its fluidity. Excessively low temperatures increase the viscosity of the molten aluminum, increasing the risk of die blockage. Therefore, maintaining the proper temperature is a key preventive measure. Operators should utilize thermal imaging and other monitoring technologies to ensure consistent temperature control.
7.Die Blockage Caused by Speed
Excessively high or low extrusion speeds can affect the fluidity of the molten aluminum. Excessively high speeds can cause eddies in the mold, increasing the risk of die blockage; while excessively low speeds can cause the molten aluminum to stagnate, leading to blockage. Finding the optimal speed for each specific profile is crucial for maintaining flow consistency.
8.Die Blockage Related to Profile Shape
The complex shape of the profile increases flow resistance during extrusion, leading to die blockage. Uneven flow is particularly noticeable when the profile wall thickness varies significantly. Engineers should consider the design of the profile carefully, optimizing it for smoother flow characteristics.
9.Mold Blockage Caused by Other Defects
In addition to the aforementioned causes, mold blockage can also occur due to defects such as bubbles, tears, uneven material quality, center position deviation, severe shrinkage, severe deformation, and overburning. Regular quality control checks and adherence to manufacturing standards can help identify and rectify these defects before they lead to blockage.
Real Case Study
The following is a real-life example of mold plugging to help you better understand the problem and its solution.
Case Background
An extrusion die was constructed using an 1800-ton extruder with a φ184 extrusion barrel. One side of the aluminum extrusion had a 40*40mm cavity with a 2.5mm wall thickness. Connected to it was a 0.8mm-thick arc arm extending to the other side. The profile had a total outer diameter of 210mm, a 170mm cantilever diameter, and an even greater arc length, weighing approximately 1.5 kg per meter. Due to the significant difference in wall thickness on both sides, the thinner-walled arc portion must exit the working zone first, and the thinner-walled portion at the distal end must also exit first. If the die exits slowly, wrinkles will form within the working zone, while if it exits quickly, it will bend toward the thicker portion, enveloping the material head. This can result in mold plugging approximately 7 out of 10 times. This case highlights the critical importance of understanding the dynamics of material flow in complex profiles.
Solution
To address this issue, the following measures were implemented:
Thin-wall Ejection First: During the extrusion process, ensure that the thinner-walled portion exits the die first to avoid mold plugging caused by delayed ejection. This requires precise timing and control of the extrusion process.
Scraping: After the aluminum profile is ejected from the mold, it is promptly removed and scraped to ensure the profile meets the required shape and reduce the risk of mold blockage. This step is crucial for maintaining product quality and preventing rework.
Temperature Control: Maintaining the aluminum profile temperature within the appropriate range ensures the fluidity of the molten aluminum and reduces the possibility of mold blockage. Implementing advanced temperature monitoring systems can help achieve this.
Adjusting the Extrusion Speed: Utilizing a high-temperature, slow extrusion method ensures a smooth flow of molten aluminum and avoids mold blockage caused by excessive speed. This adjustment can significantly enhance the overall production process.
After these adjustments, the frequency of mold blockage has been significantly reduced, and production efficiency has been improved.
Another Case Study
An extrusion die was used for an aluminum profile with an outer diameter of 80*80mm, a 4mm outer wall thickness, and an inner diameter of 2.5mm. It contained 12 male connectors of various shapes and sizes. After being installed on the machine, some of the male connectors were misaligned or even broken, leading to mold blockage. This die was a one-time die for a customer, producing over 2 tons of aluminum profiles. However, mold blockage damaged several sets of the die, resulting in a very low number of qualified products. This case illustrates the importance of precise alignment and quality control in tooling.
Solution
To address this issue, the following measures were implemented:
Shortening the Working Belt: The working belt in the middle section was shortened to reduce flow resistance. This modification can lead to a more efficient flow of molten aluminum through the die.
Smoothing: The blanking blades and drainage grooves were smoothed to reduce sticking and friction. This step is essential for ensuring that the molten aluminum can flow freely without obstruction.
Lowering the Male Pedestal: The male pedestal was lowered to reduce collision and swaying. This adjustment helps maintain stability during the extrusion process.
High-Temperature, Slow-Pressing: The mold was removed just before the aluminum exited the working belt. Graphite lubricant was applied to the blanking blade in the middle section of the mold before slowly pressing upward. This ensured that the extruded profile was properly supported on the bottom plate, guided straight, and free of wobbling.
Through these measures, we successfully produced qualified aluminum profiles, to the customer's satisfaction. This case demonstrates the effectiveness of targeted adjustments in resolving die blockage issues.
The occurrence of mold blocking in aluminum extrusion dies has brought many problems to production. Through in-depth analysis of the causes of mold blocking and summary of actual cases, we can better understand the phenomenon of mold blocking and take effective preventive measures. Operators should always be vigilant and take every production link seriously to ensure the smooth production of aluminum profiles. Only through continuous learning and practice can we effectively deal with mold blocking in a complex production environment, improve production efficiency, and ensure product quality. By fostering a culture of proactive problem-solving and continuous improvement, organizations can enhance their operational resilience and maintain high standards in aluminum profile production.
Frequently Asked and Questions regarding Aluminum Extrusion Die Blockage
1.What are the latest advances in mold design to prevent blockages in aluminum extrusion?
The latest mold designs utilize fluid dynamics simulation technology to optimize flow channel design, reduce flow resistance, and improve the fluidity of the molten aluminum. Additionally, the use of self-cleaning materials and coatings can reduce the adhesion of the molten aluminum to the mold surface.
2.How can real-time monitoring systems help predict and prevent mold blockages?
Real-time monitoring systems use sensors to collect data such as temperature, pressure, and flow rate to analyze the flow conditions of the molten aluminum. When abnormal fluctuations are detected, the system can promptly issue an alert, allowing the operator to take action to prevent blockages.
3.What training programs can help operators better manage and prevent mold blockages?
Many aluminum processing companies offer specialized training programs covering mold design principles, operating best practices, troubleshooting techniques, and the use of real-time monitoring technology. These training programs can enhance operator skills and reduce the occurrence of blockages.
4.How can I choose the right aluminum alloy to reduce the risk of mold blockages?
When selecting an aluminum alloy, consider its fluidity and temperature sensitivity. Aluminum alloys with low viscosity and good fluidity are less likely to block during extrusion. Furthermore, the alloy's composition and processing also affect its flow characteristics.
5.What is the specific impact of mold blockage on production efficiency?
Mold blockage can cause production line downtime, increase equipment maintenance and repair time, and reduce output. Furthermore, frequent blockages can lead to reduced product quality, increased scrap rates, and consequently, higher production costs.
