Multilayer extrusion pipe production lines are sophisticated systems designed to manufacture pipes with multiple layers of materials, enhancing their mechanical properties and expanding their application range. This technology is increasingly prevalent in the plastic pipe industry due to its ability to produce pipes that are lightweight, strong, and resistant to various environmental factors.

Multilayer Extrusion Pipe Production Line_1

Understanding Multilayer Extrusion Technology

Multilayer extrusion involves the simultaneous extrusion of multiple layers of different materials through a single die. This process allows for the creation of pipes that have distinct properties in each layer, which can be tailored to specific applications.

Key Components of a Multilayer Extrusion Pipe Production Line

1. Extruders: The heart of the production line, extruders melt and mix raw materials before forcing them through a die. In multilayer systems, multiple extruders are used to handle different materials for each layer.

2. Die Head: This component shapes the molten material into a pipe form. Multilayer dies are designed to ensure that each layer is evenly distributed around the pipe's circumference.

3. Cooling System: After exiting the die, the pipe must be cooled quickly to solidify its shape. This is typically done using water or air cooling systems.

4. Haul-Off Machines: These machines pull the extruded pipe through the line at a controlled speed, ensuring uniformity in wall thickness.

5. Cutting Equipment: Once cooled, pipes are cut to specified lengths by cutting machines, which can be rotary or planetary cutters.

6. Control Systems: Modern multilayer extrusion lines utilize advanced PLC (Programmable Logic Controller) systems for precise control over production parameters, enhancing efficiency and consistency.

Multilayer Extrusion Pipe Production Line_2

The Process of Multilayer Pipe Production

The production process can be broken down into several key steps:

1. Material Preparation: Raw materials (such as high-density polyethylene or PVC) are fed into hoppers connected to the extruders.

2. Melting and Mixing: The extruders heat and mix the materials until they reach a molten state suitable for shaping.

3. Layer Formation: As the molten material is pushed through the die head, it forms multiple layers according to the design specifications. Each extruder contributes its respective material layer.

4. Cooling and Calibration: The newly formed pipe passes through a cooling system where it is cooled and calibrated to ensure it meets dimensional specifications.

5. Haul-Off and Cutting: The haul-off machines pull the pipe at a consistent speed while cutting equipment trims it to desired lengths.

6. Quality Control: Throughout the process, various quality control measures are implemented to ensure that the final product meets industry standards.

Advantages of Multilayer Pipes

Multilayer pipes offer several benefits over traditional single-layer pipes:

- Enhanced Durability: The combination of different materials can improve resistance to impact, pressure, and temperature variations.

- Weight Reduction: Multilayer pipes can be lighter than their single-layer counterparts while maintaining strength.

- Improved Insulation Properties: The use of insulating materials in one or more layers can enhance thermal performance.

- Cost Efficiency: By using a combination of materials, manufacturers can reduce raw material costs while still producing high-quality products.

Applications of Multilayer Pipes

Multilayer pipes are used in various sectors including:

- Construction: For plumbing and drainage systems where durability and resistance to corrosion are critical.

- Telecommunications: In cable protection applications where flexibility and strength are required.

- Agriculture: For irrigation systems that require lightweight yet strong piping solutions.

Conclusion

The multilayer extrusion pipe production line represents a significant advancement in manufacturing technology within the plastic piping industry. By enabling the production of pipes with tailored properties for specific applications, this technology not only enhances performance but also contributes to cost savings and efficiency in production processes. As industries continue to evolve, the demand for multilayer pipes is likely to grow, driven by their superior qualities and versatility.

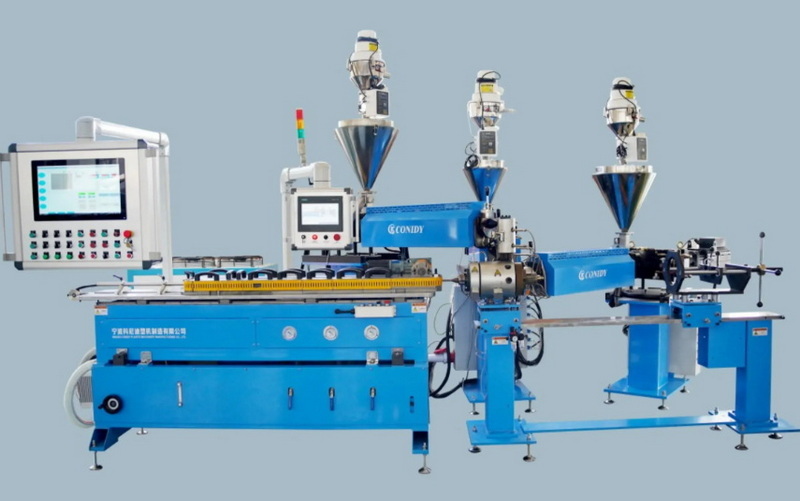

Multilayer Extrusion Pipe Production Line_3

Frequently Asked Questions (FAQ)

1. What materials are typically used in multilayer pipe production?

Multilayer pipes often utilize materials such as high-density polyethylene (HDPE), polyvinyl chloride (PVC), and other specialized polymers depending on the desired properties of the final product.

2. How does multilayer extrusion improve pipe performance?

By combining different materials within each layer, multilayer extrusion enhances properties such as impact resistance, thermal insulation, and overall durability compared to single-layer pipes.

3. What industries benefit from multilayer pipe technology?

Industries such as construction, telecommunications, agriculture, and plumbing benefit significantly from multilayer pipe technology due to its versatility and enhanced performance characteristics.

4. Can multilayer pipes be recycled?

Yes, many multilayer pipes can be recycled; however, recycling processes may vary based on the types of materials used in their construction.

5. What is the typical output capacity of a multilayer extrusion line?

Output capacity varies widely depending on equipment design and specifications but can range from hundreds to thousands of kilograms per hour based on line configuration and material types used.
