The expansive realm of 3D printing presents a diverse selection of printers and components, each characterized by distinct features and compatibility considerations. Among these components, the "extruder" stands out as a pivotal element, responsible for delivering filament to the hot end, where it undergoes melting and deposition to materialize the intended object. Monoprice provides an array of 3D printers, and a comprehensive understanding of whether an aluminum Bowden extruder aligns seamlessly with all these models remains paramount for upgrades or replacements.
Understanding Bowden Extruders
A Bowden extruder system distinguishes itself through its design, wherein the motor tasked with propelling filament resides remotely, typically mounted on the printer's frame. This motor pushes or pulls filament through a Bowden tube to the hot end[3]. In contrast to direct drive extruders, where the motor is affixed directly to the print head, the Bowden configuration minimizes the mass carried by the moving assembly[3]. This reduction in weight facilitates quicker and more precise movements, thereby enhancing print speeds and overall accuracy. Bowden extruders are frequently employed in numerous 3D printers, encompassing select Monoprice models[4]. For instance, the Monoprice Mini Delta utilizes a Bowden-style extruder to keep the weight on the printhead down[4].

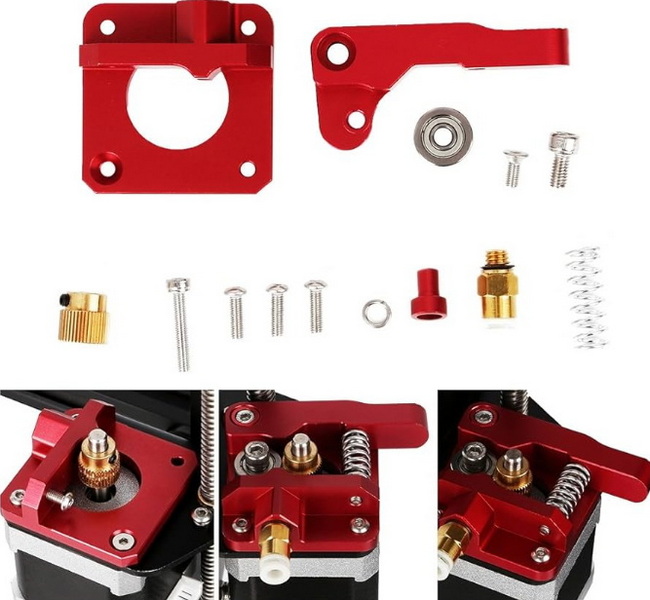

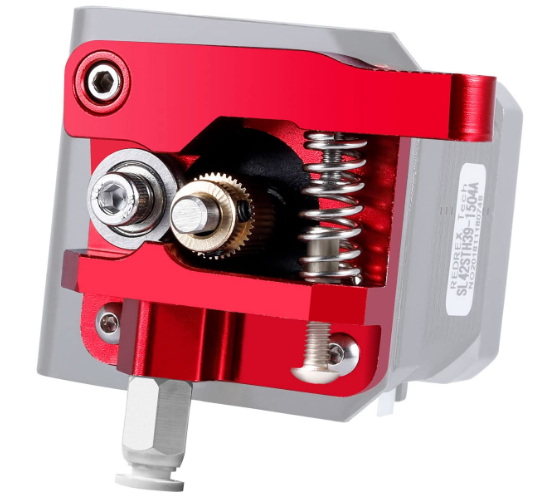

Aluminum Bowden Extruders: An Upgrade Option
Opting for an upgrade to an aluminum Bowden extruder introduces a spectrum of advantages over its plastic counterparts[2]. Aluminum extruders exhibit heightened durability and resilience to elevated temperatures, mitigating the potential for wear and deformation[2]. Furthermore, they ensure a more consistent and reliable filament feeding mechanism, culminating in superior print quality[2]. Upgrading to an all-metal extruder and a premium PTFE Bowden tube can significantly improve 3D printer performance[2].
Monoprice 3D Printer Models and Extruder Compatibility
Monoprice boasts a diverse portfolio of 3D printers, each distinguished by unique specifications and design attributes. Here's an exploration of notable models and their compatibility with aluminum Bowden extruders:
- MP Select Mini: Renowned as an accessible entry point for beginners, the MP Select Mini arrives fully assembled and pre-calibrated, streamlining the initial setup process. Characteristically, it incorporates a Bowden extruder system. According to mpselectmini.com, the MP Select Mini uses a Right Hand MK8 Extruder. For this model, the compatibility with an aluminum Bowden extruder is relatively high, with several aftermarket options available.
- Maker Select Plus: Representing an advancement over the Mini, the Maker Select Plus extends the capabilities to accommodate larger prints, catering to more ambitious projects. Similar to its predecessor, it employs a Bowden extruder configuration. Given its widespread popularity, numerous aluminum extruder upgrades are readily accessible for the Maker Select Plus, promising enhanced performance and longevity.
- Maker Ultimate: Tailored for professional-grade prints, the Maker Ultimate showcases an all-metal extruder and heat bed, underscoring its commitment to precision and reliability. However, it's important to note that the extruder is a direct drive system mounted on the print head and not a Bowden system[7]. This distinction impacts the upgrade options, as aluminum Bowden extruders are not directly compatible.
- MP Mini Delta: Celebrated for its automated self-calibration feature, the Mini Delta emerges as an attractive option for novice users, simplifying the printing process. It leverages a Bowden extruder to minimize the weight on the printhead, facilitating swift and accurate movements[4]. As with other Bowden-style printers, aluminum extruder upgrades can bolster the performance and durability of the MP Mini Delta[1].
- Monoprice MP10: The MP10 is equipped with a magnetic heated build plate and an all-metal extruder, offering a blend of convenience and robustness. It incorporates a Bowden connection. For the MP10, upgrading to an aluminum Bowden extruder can yield noticeable improvements in filament feeding consistency and overall print quality[2].
Factors Affecting Compatibility
Prior to embarking on an aluminum Bowden extruder upgrade, several critical factors warrant careful consideration to ensure seamless integration and optimal performance:
- Mounting System: Scrutinize the mounting system of the aluminum Bowden extruder to ascertain its compatibility with your specific Monoprice 3D printer model. Divergences in mounting configurations may necessitate adapter plates or modifications to facilitate proper installation.
- Filament Diameter: Affirm that the extruder accommodates the filament diameter you intend to utilize, typically 1.75mm. Discrepancies in filament diameter can impede proper feeding and compromise print quality.
- Stepper Motor Compatibility: Validate that the extruder aligns harmoniously with the NEMA 17 size stepper motors commonly integrated into Monoprice printers. Incompatibilities in stepper motor specifications can lead to operational anomalies and diminished performance.
- E-step Value: Recognize the significance of the E-steps value in regulating the accuracy of filament extrusion. Following installation, recalibrate the E-steps value to fine-tune filament delivery and achieve optimal print outcomes. The Micro Swiss Bowden Dual Gear Extruder, for example, has an E-steps value of 130[6].
Step-by-Step Guide to Ensuring Compatibility
To mitigate compatibility concerns and streamline the upgrade process, adhere to the following methodical approach:
1. Identify Your Printer Model: Accurately ascertain the precise model of your Monoprice 3D printer to facilitate targeted research and compatibility assessments.
2. Check Extruder Specifications: Diligently peruse the specifications of the aluminum Bowden extruder you intend to employ, giving particular attention to compatibility prerequisites and technical parameters.
3. Consult Online Resources: Leverage the wealth of information available through online forums, communities, and video tutorials dedicated to your printer model and the extruder under consideration.
4. Read Customer Reviews: Capitalize on the experiences of fellow users by scrutinizing customer reviews and testimonials pertaining to the installation of the aluminum Bowden extruder on their Monoprice printer.
Potential Issues and Solutions
Despite meticulous planning, unforeseen challenges may arise during the installation or operation of the aluminum Bowden extruder. Addressing these potential issues proactively can minimize disruptions and optimize performance:
- Incorrect E-steps: Rectify inaccuracies in filament feeding by meticulously calibrating the E-steps value, ensuring precise and consistent material delivery.
- Mounting Incompatibilities: Devise creative solutions to address mounting discrepancies, such as employing adapter plates or implementing modifications to the mounting system, facilitating seamless integration.
- Bowden Tube Length: Attend to the Bowden tube length to avert filament binding or excessive friction. Adjust the tube length as necessary to ensure unimpeded filament flow and reliable printing.
The Role of Firmware
Firmware plays a vital role in the operation of a 3D printer, governing various functions, including motor control, temperature regulation, and communication with the user interface. In the context of upgrading to an aluminum Bowden extruder, firmware considerations may arise, particularly concerning E-steps calibration and advanced features like linear advance.
- E-steps Calibration: As previously mentioned, calibrating the E-steps value is essential for accurate filament extrusion. This calibration process typically involves adjusting parameters within the printer's firmware to align the motor's movement with the desired amount of filament delivered.
- Linear Advance: Linear advance is an advanced firmware feature designed to compensate for pressure variations within the Bowden tube, mitigating issues like over-extrusion during sudden stops and starts. While not universally supported across all Monoprice printer models, enabling linear advance can further enhance print quality and precision when paired with an aluminum Bowden extruder.
Maintenance and Longevity
To ensure sustained performance and longevity of your aluminum Bowden extruder setup, adopt a proactive maintenance regimen encompassing the following practices:
- Regular Cleaning: Periodically clean the extruder gears and filament path to remove debris and prevent clogging, ensuring smooth and uninterrupted filament flow.
- Lubrication: Apply lubrication to moving parts, such as bearings and gears, to minimize friction and wear, prolonging the lifespan of the extruder components.
- Inspection: Conduct routine inspections of the Bowden tube and fittings, replacing worn or damaged components to maintain optimal performance and prevent potential issues.
Alternative Upgrades and Considerations
While upgrading to an aluminum Bowden extruder offers tangible benefits, exploring alternative upgrades and considerations can further optimize your 3D printing experience:
- Direct Drive Conversion: Consider converting to a direct drive extruder system for enhanced control over filament feeding and improved compatibility with flexible filaments, albeit at the expense of increased print head weight.
- Hot End Upgrade: Complement your extruder upgrade with a high-performance hot end, enabling faster printing speeds, higher temperature capabilities, and enhanced material compatibility.
- Enclosure: Enclosing your 3D printer can provide a stable thermal environment, reducing warping and improving adhesion, particularly when printing with temperature-sensitive materials like ABS.
Community Insights and Recommendations
Drawing upon the collective wisdom of the 3D printing community can offer invaluable insights and recommendations for optimizing your aluminum Bowden extruder upgrade:
- Online Forums: Engage in discussions and seek advice from experienced users on online forums and communities dedicated to Monoprice 3D printers, gleaning practical tips and troubleshooting strategies.
- Social Media Groups: Participate in social media groups and online communities, sharing your experiences and learning from the successes and challenges of fellow enthusiasts.
- Local Meetups: Attend local 3D printing meetups and workshops, networking with like-minded individuals and exchanging knowledge and insights in person.
The Future of Extruder Technology
As 3D printing technology continues to evolve, advancements in extruder design and functionality are poised to revolutionize the industry. Innovations such as multi-material extruders, high-speed extrusion systems, and intelligent filament monitoring hold the promise of unlocking new possibilities and pushing the boundaries of additive manufacturing.
Conclusion
In summation, while the allure of upgrading to an aluminum Bowden extruder resonates across numerous Monoprice 3D printer models, universal compatibility remains a nuanced consideration. Diligent assessment of factors such as mounting system intricacies, filament diameter synchronization, and stepper motor harmonization emerges as paramount. By embracing the outlined methodical approach, consulting diverse online resources, and assimilating community insights, one can significantly elevate the prospects of a triumphant upgrade, thereby unlocking the latent potential of their Monoprice 3D printer. While the Monoprice Maker Ultimate comes with an all-metal *extruder*, it isn't a Bowden system[7]. Upgrading to an all-metal extruder can improve 3D printer performance[10].
FAQ
1. What is a Bowden extruder, and how does it differ from a direct drive extruder?
A Bowden extruder has the motor mounted on the printer's frame, pushing filament through a tube to the hot end, which reduces weight on the print head[3]. A direct drive extruder mounts the motor directly on the print head, providing more direct control over the filament.
2. What are the benefits of upgrading to an aluminum Bowden extruder?
Aluminum Bowden extruders offer improved durability, higher temperature resistance, and more consistent filament feeding compared to plastic extruders[2].
3. How do I determine if an aluminum Bowden extruder is compatible with my Monoprice printer?
Check the extruder's specifications for compatibility with your printer model's mounting system, filament diameter, and stepper motor. Also, consult online resources and customer reviews for specific insights.
4. What is the E-steps value, and why is it important?
The E-steps value determines how much filament the extruder motor feeds for each step it takes. Calibrating the E-steps ensures accurate filament extrusion and print quality.
5. Where can I find reliable aluminum Bowden extruders for Monoprice 3D printers?
Reputable online retailers and 3D printing supply stores offer a variety of aluminum Bowden extruders[11]. Be sure to read customer reviews and verify compatibility before making a purchase.
