The world of 3D printing has seen significant advancements in recent years, with one of the most impactful upgrades being the transition from plastic to aluminum extruders. This upgrade is particularly popular among users of the Creality Ender 3 series, known for its versatility and affordability. In this article, we will delve into the reasons why upgrading to an aluminum extruder can significantly enhance your 3D printing experience, focusing on aspects such as durability, filament feeding consistency, heat dissipation, and compatibility with various materials.
Introduction to Aluminum Extruders
Aluminum extruders have become a staple in the 3D printing community due to their robust design and superior performance compared to traditional plastic extruders. The primary function of an extruder is to feed filament into the hot end of a 3D printer, where it is melted and deposited onto the print bed. Aluminum extruders excel in this role by providing a more consistent and reliable filament flow, which directly impacts the quality of the printed object.
Benefits of Aluminum Extruders
1. Durability and Resistance to Wear: Aluminum is much more resistant to wear and tear than plastic. This means that an aluminum extruder can withstand the constant stress of filament feeding without degrading over time, ensuring long-term reliability and reducing the need for frequent replacements.
2. Improved Consistency in Filament Feeding: The rigid metal construction of aluminum extruders ensures more consistent filament feeding. This results in more accurate and uniform extrusion, leading to better print quality with fewer imperfections.
3. Better Heat Dissipation: Aluminum conducts heat more efficiently than plastic, helping to dissipate heat away from the motor and filament. This reduces the risk of heat-related issues such as softening or clogging, which can lead to print imperfections.
4. Enhanced Filament Grip: Many aluminum extruders come with advanced gear designs, such as dual-gear systems, which provide a better grip on the filament. This minimizes slippage and ensures consistent extrusion, especially beneficial for flexible filaments like TPU.
5. Expanded Material Compatibility: Aluminum extruders excel in high-temperature environments due to their superior heat resistance, allowing users to confidently print with a wide range of materials, including high-performance filaments like ABS and nylon.
Types of Extruders
There are generally two main types of extruders used in 3D printing:
- Direct Drive Extruders: These mount the extruder motor and feeding mechanism directly on top of the hot end. This configuration minimizes the distance the filament has to travel, offering better control, especially with flexible filaments.
- Bowden Extruders: In this setup, the extruder motor is located remotely, typically on the printer frame, and the filament is fed to the hot end through a PTFE (Teflon) tube. Bowden extruders reduce the weight on the moving print head, allowing for faster printing speeds but may require more retraction tuning.
Upgrading to an Aluminum Extruder
Upgrading to an aluminum extruder is a worthwhile investment for improving print quality, consistency, and the overall lifespan of your 3D printer. While the stock plastic extruder is functional, it has limitations that can affect performance over time. An aluminum extruder offers increased durability, better filament feeding, and improved heat dissipation, making it a popular and effective upgrade.
Installation Tips
1. Prepare the Tools and Components: Ensure you have all necessary tools and components, including the aluminum extruder, screws, and any additional hardware required for the upgrade.
2. Remove the Stock Extruder: Carefully disassemble and remove the stock plastic extruder from your printer.
3. Install the Aluminum Extruder: Mount the aluminum extruder according to the manufacturer's instructions. This typically involves attaching it to the printer frame and connecting it to the hot end.
4. Configure the Settings: Adjust your printer's settings to optimize performance with the new extruder. This may include calibrating the extruder steps per mm and adjusting retraction settings.
Common Issues and Solutions
When using an aluminum extruder, you might encounter some common issues:
- Under-Extrusion: This occurs when inadequate material flows out of the nozzle. Check for obstructions, ensure proper nozzle heating, and adjust the extrusion multiplier in your slicer software.
- Over-Extrusion: Too much material is extruded, causing excess plastic buildup. Adjust the extrusion multiplier and ensure correct filament diameter settings.
- Filament Slipping: If the filament slips from the drive gear, check the gear tension and ensure the filament is properly seated.
The Role of Aluminum Extrusion Frames in 3D Printing

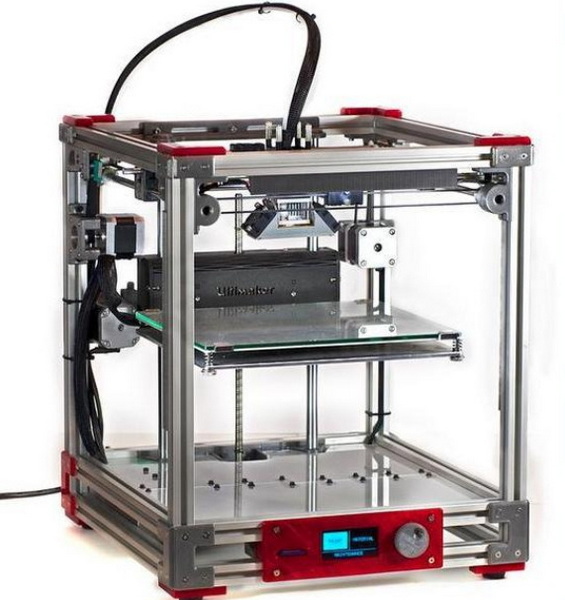

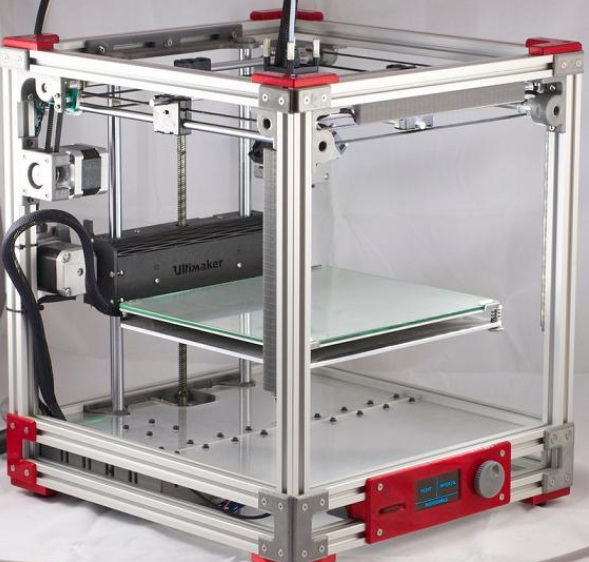

Beyond the extruder itself, aluminum extrusion plays a crucial role in the overall structure of 3D printers. Aluminum frames are widely used due to their lightweight yet robust nature, which provides stability and reduces vibrations during printing. This stability is essential for achieving high-quality prints with precise layer adhesion and accurate dimensional tolerances.
Optimizing Aluminum Extrusion Frames
Optimizing the design of aluminum extrusion frames can further enhance the performance of your 3D printer. Key considerations include:
1. Selecting the Right Aluminum Alloy: Alloys like 6061 or 6082 are preferred for their high strength and rigidity, providing stronger structural support and preventing distortion during printing[1][2].
2. Choosing the Correct Frame Size: Larger frame sizes, such as 3030, offer greater support and stability, which is important for maintaining precision and reducing vibrations[1].
3. Design and Construction: A well-designed frame should minimize vibrations and ensure stability, which is crucial for achieving high-quality prints[1][2].
Benefits of Combining 3D Printing and Aluminum Extrusion
The integration of 3D printing with aluminum extrusion offers several benefits:
- Enhanced Design Flexibility: Designers can create complex parts that combine the strength and stability of aluminum extrusions with the intricate geometries achievable through 3D printing[2].
- Rapid Prototyping: 3D printing can be used to create prototypes of components that can then be tested for fit and function with extruded aluminum parts, reducing development time and costs[2].
- Cost Savings: Producing custom parts on demand reduces the need for large inventories of standard components, and 3D printing minimizes material waste, leading to more sustainable manufacturing practices[2].
Dual Extruder Aluminum Extrusion
For advanced printing applications, dual extruder setups offer additional benefits. By combining two extruders, users can print with different materials simultaneously, such as soluble supports, enhancing print quality and reducing post-processing time.
Benefits of Dual Extruder Aluminum Extrusion
1. Improved Support Structures: Using one extruder for soluble supports reduces post-processing time and prevents damage to the print, preserving its surface quality[5].
2. Multi-Material Printing: Combining materials with different properties enhances the structural integrity and functionality of prints, allowing for the creation of functional prototypes[5].
3. Enhanced Aesthetics: Dual extruders enable multi-color printing without the need for post-processing, making prints more visually appealing[5].
4. Increased Efficiency: Independent dual extruders allow for faster printing through features like mirror and duplication modes, significantly increasing production efficiency[5].
Limitations of Dual Extruder Aluminum Extrusion
While dual extruder setups offer many advantages, they also come with some limitations:
- Higher Initial Cost: Dual extruder systems are more expensive than single extruder setups.
- Increased Complexity: Setup and maintenance can be more complex due to the additional extruder.
- Reduced Build Volume: The presence of two extruders can reduce the available build volume.
Conclusion
Upgrading to an aluminum extruder is a significant step towards enhancing the performance and reliability of your 3D printer. Aluminum extruders offer a combination of strength, durability, and thermal management that makes them ideal for high-quality printing applications. By understanding the benefits and considerations of aluminum extruders, you can optimize your printer's performance and unlock new possibilities in 3D printing.
FAQ
1. Why Should I Upgrade to an Aluminum Extruder?
Upgrading to an aluminum extruder improves print quality by providing consistent filament feeding, better heat dissipation, and increased durability compared to plastic extruders. This upgrade is particularly beneficial for frequent users or those requiring high reliability.
2. What Are the Signs That My Extruder Needs to Be Replaced?
Signs that your extruder may need replacement include inconsistent filament feeding, slippage, wear and tear, and difficulty printing with flexible filaments. Upgrading to an aluminum extruder can address these issues and improve print quality.
3. How Do I Install an Aluminum Extruder on My Ender 3?
To install an aluminum extruder on your Ender 3, follow these steps:
- Prepare necessary tools and components.
- Remove the stock extruder.
- Install the aluminum extruder according to the manufacturer's instructions.
- Configure your printer settings for optimal performance.
4. What Types of Filaments Are Compatible with Aluminum Extruders?
Aluminum extruders are compatible with a wide range of filaments, including PLA, ABS, PETG, TPU, and nylon. This versatility allows users to experiment with different materials and applications without needing to switch extruders.
5. Are Aluminum Extruders Cost-Effective?
Yes, aluminum extruders are cost-effective. They offer a longer lifespan and reduce the need for frequent replacements, making them a worthwhile investment for frequent users. Additionally, aluminum extrusion is an efficient manufacturing process, allowing for cost-effective production.
